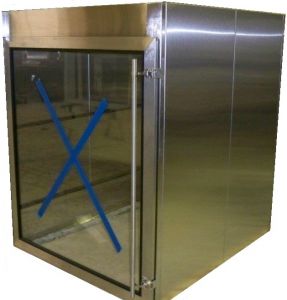

Cart Pass Thru - Straight Thru
CPT2448-36-SS-NMI
Please Call for Pricing
- Construction of 16 ga, type 304 SS
- OD 30"w x 52"h x 38"l
- ID 24"w x 48"h x 36"l
- (2) Surface mounted SS frame doors w/ 1/4" clear acrylic window, pivot hinges
- 1/4 turn chrome plated handles, sweeps (shipped loose) & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS wall trim
- No floor
- Construction of 16 ga, type 304 SS
- OD 30"w x 52"h x 38"l
- ID 24"w x 48"h x 36"l
- (2) Surface mounted SS frame doors w/ 1/4" clear acrylic window, pivot hinges
- 1/4 turn chrome plated handles, sweeps (shipped loose) & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS wall trim
- No floor

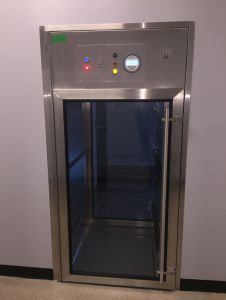

Cart Pass Thru - HEPA Filtered
CPT3060-35-SS-EI-RHC
Please Call for Pricing
*** 100% Recirculated Airflow ****
- Constructed of 304 stainless steel with a #4 satin finish double wall construction
- ID 30"w x 60"h x 35"d
- OD 35"w x 76"h x 35"d
- Two(2) SS Doors fabricated of 1" x 3" stainless steel tubing tempered safety glass view window & stainless steel continuous hinge
- Electrical-Magnetic Interlock.
- 4ea PVC wall bumpers provided
- Fan powered HEPA filter system which will recirculate air within the chamber
- Customer to supply 115 volt, 3.0 FLA power source
- Wall trim angles Included
- Unit supplied with floor mounting angles
*** 100% Recirculated Airflow ****
- Constructed of 304 stainless steel with a #4 satin finish double wall construction
- ID 30"w x 60"h x 35"d
- OD 35"w x 76"h x 35"d
- Two(2) SS Doors fabricated of 1" x 3" stainless steel tubing tempered safety glass view window & stainless steel continuous hinge
- Electrical-Magnetic Interlock.
- 4ea PVC wall bumpers provided
- Fan powered HEPA filter system which will recirculate air within the chamber
- Customer to supply 115 volt, 3.0 FLA power source
- Wall trim angles Included
- Unit supplied with floor mounting angles
Cart Pass Thru
CPT3060-48-SS-SP
Please Call for Pricing
Cart Pass Thru
CPT3648-48-SS-MI
Please Call for Pricing
- Construction of double wall 16 ga, type 304 SS (Folded Steel - Not Welded)
- OD 42"w x 52"h x 49"l
- ID 36"w x 48"h x 48"l
- Single, surface mounted SS frame door on each side w/ 1/4" clear acrylic window
- Black powder painted pivot hinge, 1/4 turn chrome plated handles & mechanical interlock
- Construction of double wall 16 ga, type 304 SS (Folded Steel - Not Welded)
- OD 42"w x 52"h x 49"l
- ID 36"w x 48"h x 48"l
- Single, surface mounted SS frame door on each side w/ 1/4" clear acrylic window
- Black powder painted pivot hinge, 1/4 turn chrome plated handles & mechanical interlock
Cart Pass Thru - Straight Thru
CPT3648-54-SS-NMI
Please Call for Pricing
- Construction of 16 ga, type 304 SS
- OD 42"w x 49"h x 56"l
- ID 36"w x 48"h x 54"l
- (2) Surface mounted SS frame doors w/ 1/4" clear acrylic window, pivot hinges
- 1/4 turn chrome plated handles, sweeps (shipped loose) & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS wall trim
- No floor
- Construction of 16 ga, type 304 SS
- OD 42"w x 49"h x 56"l
- ID 36"w x 48"h x 54"l
- (2) Surface mounted SS frame doors w/ 1/4" clear acrylic window, pivot hinges
- 1/4 turn chrome plated handles, sweeps (shipped loose) & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS wall trim
- No floor
Cart Pass Thru
CPT3675-36-SS-NMI
Please Call for Pricing
- Construction of double wall, 16 ga, type 304 SS with inward folded flanges, fastened from inside allowing for caulked, sealed seams
- OD 42"w x 79"h x 38"l
- ID 36"w x 75"h x 36"l
- (2) Surface mounted SS frame doors w/ 1/4" clear acrylic window, black powder painted pivot hinges, EDPM gasket, SS handles & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS wall trim
- No floor
- Construction of double wall, 16 ga, type 304 SS with inward folded flanges, fastened from inside allowing for caulked, sealed seams
- OD 42"w x 79"h x 38"l
- ID 36"w x 75"h x 36"l
- (2) Surface mounted SS frame doors w/ 1/4" clear acrylic window, black powder painted pivot hinges, EDPM gasket, SS handles & mechanical interlock
- 1 1/2" x 1 1/2" x 16 ga SS wall trim
- No floor
Cart Pass Thru
CPT4041-24-SS-DD-MI
Please Call for Pricing
- Construction of 16 Ga. #304 Stainless #4 Satin Finish
- OD 42"w x 49"h x 38"d
- ID 36"w x 48"h x 36"d
- Two (2) pairs of surface mounted SS frame doors w/ 1/4" clear acrylic window, Pivot hinges,
- 1/4 turn chrome plated handles, mechanical interlock, door sweeps (shipped loose)
- 1.5"- 1.5" x 16ga SS mounting trim
- Construction of 16 Ga. #304 Stainless #4 Satin Finish
- OD 42"w x 49"h x 38"d
- ID 36"w x 48"h x 36"d
- Two (2) pairs of surface mounted SS frame doors w/ 1/4" clear acrylic window, Pivot hinges,
- 1/4 turn chrome plated handles, mechanical interlock, door sweeps (shipped loose)
- 1.5"- 1.5" x 16ga SS mounting trim

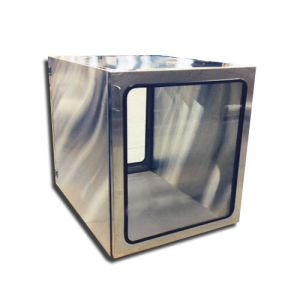

Cart Pass Thru
CPT4045-49-SS-EI
Please Call for Pricing
Cart Pass Thru
CPT4848-48-SS-EI-DD-HC
Please Call for Pricing
- Construction of double wall 16 ga, type 304 SS, #4 polish finish
- OD 58"w x 64"h x 50"d
- ID 48"w x 48"h x 48"d
- Top mounted recirculating hepa filtered ceiling w/ gasket seal replaceable 99.99% hepa (20" x 20" x 3")
- Direct drive motorized impeller blower & 100W, 110V motor,
- Removable SS grille, internal access panel for motor, blower to run continuously
- No floor
- Sidewall mounted PVC bumper
- Double SS frame doors both sides w/ 1/4" clear acrylic window, pivot hinges
- 1/4 turn chrome plated handle & electrical interlock
- Mounting trim to be 1 1/2" x 1 1/2" x 16 ga SS angle
- Construction of double wall 16 ga, type 304 SS, #4 polish finish
- OD 58"w x 64"h x 50"d
- ID 48"w x 48"h x 48"d
- Top mounted recirculating hepa filtered ceiling w/ gasket seal replaceable 99.99% hepa (20" x 20" x 3")
- Direct drive motorized impeller blower & 100W, 110V motor,
- Removable SS grille, internal access panel for motor, blower to run continuously
- No floor
- Sidewall mounted PVC bumper
- Double SS frame doors both sides w/ 1/4" clear acrylic window, pivot hinges
- 1/4 turn chrome plated handle & electrical interlock
- Mounting trim to be 1 1/2" x 1 1/2" x 16 ga SS angle
Cart Pass Thru
CPT4860-48-SS-EI-DD-HC
Please Call for Pricing
- Construction of double wall 16 ga, type 304 SS, #4 polish finish
- OD 58"w x 76"h x 60"d
- ID 48"w x 60"h x 48"d
- Top mounted recirculating hepa filtered ceiling w/ gasket seal replaceable 99.99% hepa (20" x 20" x 3")
- Direct drive motorized impeller blower & 100W, 110V motor, removable SS grille
- Internal access panel for motor, blower to run continuously
- No floor
- Sidewall mounted PVC bumper
- Double SS frame doors both sides w/ ¼” clear acrylic window, pivot hinges,
- 1/4 turn chrome plated handle & electrical interlock
- Mounting trim to be 1 1/2" x 1 1/2" x 16 ga SS angle
- Construction of double wall 16 ga, type 304 SS, #4 polish finish
- OD 58"w x 76"h x 60"d
- ID 48"w x 60"h x 48"d
- Top mounted recirculating hepa filtered ceiling w/ gasket seal replaceable 99.99% hepa (20" x 20" x 3")
- Direct drive motorized impeller blower & 100W, 110V motor, removable SS grille
- Internal access panel for motor, blower to run continuously
- No floor
- Sidewall mounted PVC bumper
- Double SS frame doors both sides w/ ¼” clear acrylic window, pivot hinges,
- 1/4 turn chrome plated handle & electrical interlock
- Mounting trim to be 1 1/2" x 1 1/2" x 16 ga SS angle

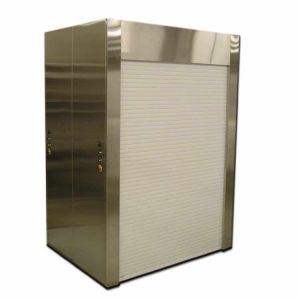

Cart Pass Thru - Roll Up Doors
CPT6087-50-SS-AD-SP
Please Call for Pricing
Cart Pass Thru - Air Shower
CPTAS637-PLC-NF-ST-SP
Please Call for Pricing
- Construction of double wall 16 ga, type 304 SS, #4 polish finish
- OD 64"w x 116"h x 40"d
- ID 48"w x 80"h x 36"d
- Top mounted 2 HP blower with gasket seal replaceable 99.99% HEPA.
- PLC controller with HMI touchpad.
- 24 internal nozzles 6000-8000 FPM.
- External access panel for motor.
- LED light fixtures for 60 FC at 40" AFF
- No floor
- Sidewall mounted PVC bumper
- Double anodized aluminum doors and frames both sides w/ 1/4" clear acrylic insert & electrical interlock
- Construction of double wall 16 ga, type 304 SS, #4 polish finish
- OD 64"w x 116"h x 40"d
- ID 48"w x 80"h x 36"d
- Top mounted 2 HP blower with gasket seal replaceable 99.99% HEPA.
- PLC controller with HMI touchpad.
- 24 internal nozzles 6000-8000 FPM.
- External access panel for motor.
- LED light fixtures for 60 FC at 40" AFF
- No floor
- Sidewall mounted PVC bumper
- Double anodized aluminum doors and frames both sides w/ 1/4" clear acrylic insert & electrical interlock
