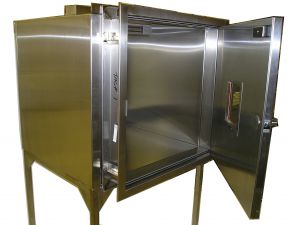

Pass Through - Fire Rated Door & Frame
PT1818-18-SS-EI-FD-SP
Please Call for Pricing
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 26 1/2"w x 24"h x 26"d
- ID 18"w x 18"h x 18"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (2) pivot hinges & fully gasketed, other side to flat
- (1) Side to have an 1 3/4 SS "B" label fire door w/ 8" x 8" wire glass window, latching knobset, spring loaded, plated butt hinges mounted in to a UL labeled, SS, (4) sided jamb w/ SS angles to attach to the PT body & Electric interlock
- SS support frame to 42" high
Unit Construction:
The Fire Rated frame is face welded in one piece with the door & mating trim.
the Pass thru body is attached to one side making it necessary for the wall to be open in order to install the frame.
The Pass thru body has to be fully supported from the floor with a tubing frame so the wall will not carry the weight.
The only interlock is an electronic version since there is no way to mount the mechanical version.
The wall thickness is required as part of the submittals.
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 26 1/2"w x 24"h x 26"d
- ID 18"w x 18"h x 18"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (2) pivot hinges & fully gasketed, other side to flat
- (1) Side to have an 1 3/4 SS "B" label fire door w/ 8" x 8" wire glass window, latching knobset, spring loaded, plated butt hinges mounted in to a UL labeled, SS, (4) sided jamb w/ SS angles to attach to the PT body & Electric interlock
- SS support frame to 42" high
Unit Construction:
The Fire Rated frame is face welded in one piece with the door & mating trim.
the Pass thru body is attached to one side making it necessary for the wall to be open in order to install the frame.
The Pass thru body has to be fully supported from the floor with a tubing frame so the wall will not carry the weight.
The only interlock is an electronic version since there is no way to mount the mechanical version.
The wall thickness is required as part of the submittals.

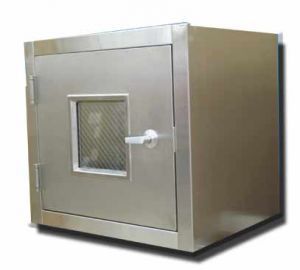

Pass Through - Fire Rated Door
PT1818-18-SS-MI-FD
Please Call for Pricing
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 27"w x 24"h x 20"d
- ID 18"w x 18"h x 18"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (2) pivot hinges & fully gasketed
- Other side to have an 1 3/4" SS "B" label fire door w/ 8" x 8" wire glass window, latching knobset, spring loaded, plated butt hinges & mechanical interlock
- Mounting angle 1 1/2" x 1 1/2" x 16 ga SS
Note: Only the fire door carries the UL label.
The entire unit, while being constructed of noncombustible materials, is not labeled.
The side with the fire door should be mounted as flush as possible with the rated wall.
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 27"w x 24"h x 20"d
- ID 18"w x 18"h x 18"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (2) pivot hinges & fully gasketed
- Other side to have an 1 3/4" SS "B" label fire door w/ 8" x 8" wire glass window, latching knobset, spring loaded, plated butt hinges & mechanical interlock
- Mounting angle 1 1/2" x 1 1/2" x 16 ga SS
Note: Only the fire door carries the UL label.
The entire unit, while being constructed of noncombustible materials, is not labeled.
The side with the fire door should be mounted as flush as possible with the rated wall.

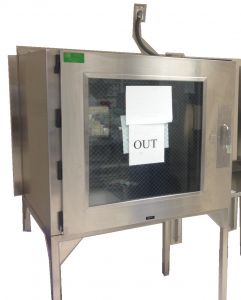

Pass Through - Fire Rated Door & Frame
PT2424-24-SS-EI-FD-SP
Please Call for Pricing
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 32 1/2"w x 30"h x 26"d
- ID 24"w x 24"h x 24"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (3) pivot hinges & fully gasketed, other side to flat
- (1) Side to have an 1 3/4" SS "B" label fire door w/ 8" x 8" wire glass window, latching knobset, spring loaded, plated butt hinges mounted in to a UL labeled, SS, (4) sided jamb w/ SS angles to attach to the PT body & Electric Interlock
- Stainless Steel Frame - up to 42"
UNIT CONSTRUCTION:
The Fire Rated frame is face welded in one piece with the door & mating trim.
the Pass thru body is attached to one side making it necessary for the wall to be open in order to install the frame.
The Pass thru body has to be fully supported from the floor with a tubing frame so the wall will not carry the weight.
The only interlock is an electronic version since there is no way to mount the mechanical version.
The wall thickness is required as part of the submittals.
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 32 1/2"w x 30"h x 26"d
- ID 24"w x 24"h x 24"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (3) pivot hinges & fully gasketed, other side to flat
- (1) Side to have an 1 3/4" SS "B" label fire door w/ 8" x 8" wire glass window, latching knobset, spring loaded, plated butt hinges mounted in to a UL labeled, SS, (4) sided jamb w/ SS angles to attach to the PT body & Electric Interlock
- Stainless Steel Frame - up to 42"
UNIT CONSTRUCTION:
The Fire Rated frame is face welded in one piece with the door & mating trim.
the Pass thru body is attached to one side making it necessary for the wall to be open in order to install the frame.
The Pass thru body has to be fully supported from the floor with a tubing frame so the wall will not carry the weight.
The only interlock is an electronic version since there is no way to mount the mechanical version.
The wall thickness is required as part of the submittals.
Pass Through - Fire Rated Door
PT2424-24-SS-MI-FD
Please Call for Pricing
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 32 1/2"w x 30"h x 26"d
- ID 24"w x 24"h x 24"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (3) pivot hinges & fully gasketed
- Other side to have an 1 3/4" SS "B" label fire door w/ 10" x 10" wire glass window, latching knobset, spring loaded butt hinges & mechanical interlock
- Mounting angle 1 1/2" x 1 1/2" x 16 ga SS
Note: Only the fire door carries the UL label. The entire unit, while being constructed of noncombustible materials, is not labeled.
The side with the fire door should be mounted as flush as possible with the rated wall.
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 32 1/2"w x 30"h x 26"d
- ID 24"w x 24"h x 24"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (3) pivot hinges & fully gasketed
- Other side to have an 1 3/4" SS "B" label fire door w/ 10" x 10" wire glass window, latching knobset, spring loaded butt hinges & mechanical interlock
- Mounting angle 1 1/2" x 1 1/2" x 16 ga SS
Note: Only the fire door carries the UL label. The entire unit, while being constructed of noncombustible materials, is not labeled.
The side with the fire door should be mounted as flush as possible with the rated wall.

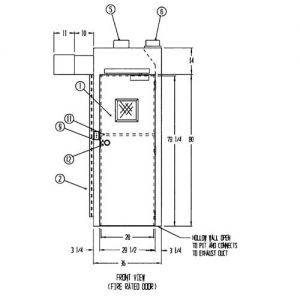

Pass Through - Fire Rated Door
PT3080-64-SS-EI-FD
Please Call for Pricing
Pass Through - Fire Rated Door & Frame
PT3636-36-SS-EI-FD-SP
Please Call for Pricing
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 44 1/2"w x 42"h x 38"d + (Depth of Wall)
- ID 36"w x 36"h x 36"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (2) pivot hinges & fully gasketed, other side to flat
- (1) Side to have an 1 3/4" SS "B" label fire door w/ 10" x 10" wire glass window, latching knobset, spring loaded, plated butt hinges mounted in to a UL labeled, SS, (4) sided jamb w/ SS angles to attach to the PT body & Electric interlock
- Stainless Steel support frame to 36" high
UNIT CONSTRUCTION:
The Fire Rated frame is face welded in one piece with the door & mating trim.
The Pass thru body is attached to one side making it necessary for the wall to be open in order to install the frame.
The Pass thru body has to be fully supported from the floor with a tubing frame so the wall will not carry the weight.
The only interlock is an electronic version since there is no way to mount the mechanical version.
The wall thickness is required as part of the submittals.
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 44 1/2"w x 42"h x 38"d + (Depth of Wall)
- ID 36"w x 36"h x 36"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (2) pivot hinges & fully gasketed, other side to flat
- (1) Side to have an 1 3/4" SS "B" label fire door w/ 10" x 10" wire glass window, latching knobset, spring loaded, plated butt hinges mounted in to a UL labeled, SS, (4) sided jamb w/ SS angles to attach to the PT body & Electric interlock
- Stainless Steel support frame to 36" high
UNIT CONSTRUCTION:
The Fire Rated frame is face welded in one piece with the door & mating trim.
The Pass thru body is attached to one side making it necessary for the wall to be open in order to install the frame.
The Pass thru body has to be fully supported from the floor with a tubing frame so the wall will not carry the weight.
The only interlock is an electronic version since there is no way to mount the mechanical version.
The wall thickness is required as part of the submittals.
Pass Through - Fire Rated Door
PT3636-36-SS-MI-FD
Please Call for Pricing
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 44 1/2"w x 42"h x 39"d
- Nominal ID 36"w x 36"h x 36"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (3) pivot hinges & fully gasketed
- Other side to have an 1 3/4" SS "B" label fire door w/ 10" x 10" wire glass window, latching knobset, spring loaded butt hinges & mechanical interlock
- Mounting angle 1 1/2" x 1 1/2" x 16 ga SS shipped loose for field install
- Construction of double wall 16 ga, type 304, stainless steel, # 4 polish finish
- OD 44 1/2"w x 42"h x 39"d
- Nominal ID 36"w x 36"h x 36"d
- (1) Side to have SS frame door w/ 1/4" wire glass window, 1/4 turn chrome plated handle, (3) pivot hinges & fully gasketed
- Other side to have an 1 3/4" SS "B" label fire door w/ 10" x 10" wire glass window, latching knobset, spring loaded butt hinges & mechanical interlock
- Mounting angle 1 1/2" x 1 1/2" x 16 ga SS shipped loose for field install

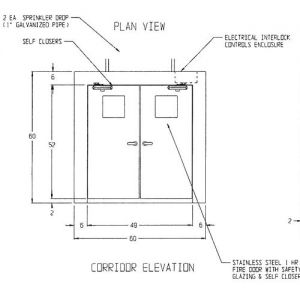

Pass Through - Fire Rated Door
PT3652-29-SS-EI-FD-SP
Please Call for Pricing
