Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS1210-8-ST-PLC-RUD-KD
Please Call for Pricing
- Construction of 16 Ga, white epoxy painted steel
- OD 158"w x 120"l x 144"h (the rollup doors add 20" to each end)
- ID 144"w x 120"l x 96"h
- Top blower box to have (4) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (148) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors sized to give clear 144"w x 96"h clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- (2) Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (4) sections w/ doors loose
- Construction of 16 Ga, white epoxy painted steel
- OD 158"w x 120"l x 144"h (the rollup doors add 20" to each end)
- ID 144"w x 120"l x 96"h
- Top blower box to have (4) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (148) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors sized to give clear 144"w x 96"h clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- (2) Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (4) sections w/ doors loose
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS1220-8-PLC-NF-RU-AD
Please Call for Pricing
- Construction of 16 ga, white epoxy painted steel
- OD 168”w x 300”l x 136”h (the rollup doors add 20” to each end)
- ID 144”w x 240”l x 96”h
- Top blower box to have (8) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (288) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 144”w x 96”h clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- (4) Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (16) sections w/ doors loose
- Construction of 16 ga, white epoxy painted steel
- OD 168”w x 300”l x 136”h (the rollup doors add 20” to each end)
- ID 144”w x 240”l x 96”h
- Top blower box to have (8) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (288) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 144”w x 96”h clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- (4) Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (16) sections w/ doors loose
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS587-ST-PLC-NF-RUD-KD
Please Call for Pricing
- OD 72"w x 108"l x 124"h
- ID 60"w x 96"l x 84"h
- Construction of 16 GA, galvanealed (painted or unpainted) or (304SS/316SS) (Specify)
- Top blower box to have (2) 5 HP, 480/230/208V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- (2) 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, NEMA 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 72" x 84" Automatic roll-up doors, electrically interlocked w/ (3) E-stops
- Flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping
- Lifting lugs for ease of assembly
- OD 72"w x 108"l x 124"h
- ID 60"w x 96"l x 84"h
- Construction of 16 GA, galvanealed (painted or unpainted) or (304SS/316SS) (Specify)
- Top blower box to have (2) 5 HP, 480/230/208V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- (2) 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, NEMA 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 72" x 84" Automatic roll-up doors, electrically interlocked w/ (3) E-stops
- Flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping
- Lifting lugs for ease of assembly
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS615-8-PLC-NF-RU-AD
Please Call for Pricing
- Construction of 16 Ga, white epoxy painted steel
- OD 88”w x 220”l x 140”H (the rollup doors add 20” to each end)
- ID 72”w x 180”l x 100”H- Top blower box to have (3) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (120) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 72”w x 100”H clear opening, doors activated by field mounted push buttons.
- 35% Disposable prefilters in low wall mounted aluminum grille- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted fluorescent lighting
- Unit shipped knock down in (12) sections w/ doors loose
- Construction of 16 Ga, white epoxy painted steel
- OD 88”w x 220”l x 140”H (the rollup doors add 20” to each end)
- ID 72”w x 180”l x 100”H- Top blower box to have (3) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (120) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 72”w x 100”H clear opening, doors activated by field mounted push buttons.
- 35% Disposable prefilters in low wall mounted aluminum grille- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted fluorescent lighting
- Unit shipped knock down in (12) sections w/ doors loose
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS6159-ST-PLC-AD-KD
Please Call for Pricing
- ID: 72"w x 178"l x 100"h
- OD: 86"w x 180"l x 140"h
- Construction of epoxy painted steel
- Top blower boxes to have 208/230/460 V (SPECIFY), 3 phase, 60 Hz, direct drive high pressure motor blowers, developing 1800 CFM to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- 120 PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor/blower & filter on top or side of blower box
- PLC controlled, allowing for control of unit direction, interlocks, and cycle duration
- No floor, ceiling mounted sensor for automatic start
- (2) HIGH SPEED roll-up doors with VFD controls and integrated into the PLC,
- Four (4) emergency stop buttons. The button will end the shower cycle and unlock the doors
- 35% disposable prefilters in low wall mounted aluminum grilles
- 60 FC flush mounted LED lighting
- Unit shipped in (12) Twelve sections
- ID: 72"w x 178"l x 100"h
- OD: 86"w x 180"l x 140"h
- Construction of epoxy painted steel
- Top blower boxes to have 208/230/460 V (SPECIFY), 3 phase, 60 Hz, direct drive high pressure motor blowers, developing 1800 CFM to 4" SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- 120 PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor/blower & filter on top or side of blower box
- PLC controlled, allowing for control of unit direction, interlocks, and cycle duration
- No floor, ceiling mounted sensor for automatic start
- (2) HIGH SPEED roll-up doors with VFD controls and integrated into the PLC,
- Four (4) emergency stop buttons. The button will end the shower cycle and unlock the doors
- 35% disposable prefilters in low wall mounted aluminum grilles
- 60 FC flush mounted LED lighting
- Unit shipped in (12) Twelve sections
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS68-7-PLC-NF-RU-AD
Please Call for Pricing
- Construction of 16 Ga, white epoxy painted steel
- OD 88”w x 136”l x 130”H - ID 72”w x 96”l x 90”H
- Top blower box to have (2) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (72) PVC nozzles on walls & ceiling @ 7500 FPM each- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 72”w x 90”H clear opening, doors activated by field mounted push buttons
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted fluorescent or LED lighting
- Unit shipped knock down in (8) sections w/ doors loose
- Construction of 16 Ga, white epoxy painted steel
- OD 88”w x 136”l x 130”H - ID 72”w x 96”l x 90”H
- Top blower box to have (2) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal HEPA filter mounted in blower box
- (72) PVC nozzles on walls & ceiling @ 7500 FPM each- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 72”w x 90”H clear opening, doors activated by field mounted push buttons
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted fluorescent or LED lighting
- Unit shipped knock down in (8) sections w/ doors loose

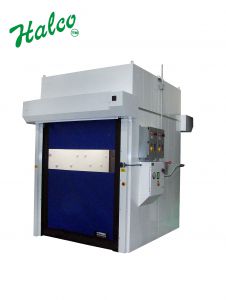

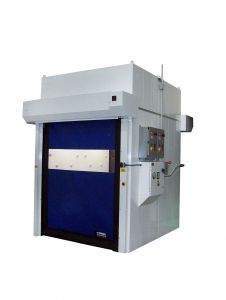

Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS688-ST-PLC-RUD-KD
Please Call for Pricing
- OD: 86"w x 96"l x 130"h
- ID: 72"w x 96"l x 90"h
- Unit constructed of 16 Ga Galvannealed steel and coated with white epoxy paint
- 2 each 5HP high pressure blowers. Each capable of delivering 1800 CFM @ 4.0" WC 460 volt, 3 phase, 6.1 FLA
- 2 each hi capacity HEPA filters 24 x 24 x 11 1/2 capable of 2000CFM @ 1.0" WC
- 4 Ea. Low wall air return grills with 30" x 12" x 1" 35% ASHRAE pre-filters
- 80 Ea. Wall and ceiling mounted air nozzles capable of 7,000 FPM average air flow
- 2 Ea. Automatic high speed rollup fabric doors with controls integrated into air shower
- Air shower PLC control system with touchscreen interface on controls enclosure
- Internal presence sensors for automatic system start
- Unit provided with emergency stop buttons inside and outside each door to shut air shower down and open doors
- LED lighting system to provide a minimum of 60 FC of lighting
- Unit to be shipped knockdown for field assembly
- OD: 86"w x 96"l x 130"h
- ID: 72"w x 96"l x 90"h
- Unit constructed of 16 Ga Galvannealed steel and coated with white epoxy paint
- 2 each 5HP high pressure blowers. Each capable of delivering 1800 CFM @ 4.0" WC 460 volt, 3 phase, 6.1 FLA
- 2 each hi capacity HEPA filters 24 x 24 x 11 1/2 capable of 2000CFM @ 1.0" WC
- 4 Ea. Low wall air return grills with 30" x 12" x 1" 35% ASHRAE pre-filters
- 80 Ea. Wall and ceiling mounted air nozzles capable of 7,000 FPM average air flow
- 2 Ea. Automatic high speed rollup fabric doors with controls integrated into air shower
- Air shower PLC control system with touchscreen interface on controls enclosure
- Internal presence sensors for automatic system start
- Unit provided with emergency stop buttons inside and outside each door to shut air shower down and open doors
- LED lighting system to provide a minimum of 60 FC of lighting
- Unit to be shipped knockdown for field assembly
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS810-7-PLC-NF-IB-STD
Please Call for Pricing
- Construction of 16 ga, white epoxy painted steel
- OD 89" W x 120" L x 120" H (the rollup doors add 20" to each end)
- ID 72" W x 116" L x 80" H
- Top blower box to have (2) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- Two (2) sets of dual swinging doors, aluminum frame, full glass w/closers, magnetic door locks
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (8) sections w/doors loose
- Construction of 16 ga, white epoxy painted steel
- OD 89" W x 120" L x 120" H (the rollup doors add 20" to each end)
- ID 72" W x 116" L x 80" H
- Top blower box to have (2) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- Two (2) sets of dual swinging doors, aluminum frame, full glass w/closers, magnetic door locks
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (8) sections w/doors loose
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS887-ST
Please Call for Pricing
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS887-ST-PLC-AD-NF-SP
Please Call for Pricing
- OD 102"w x 118"l x 124"h
- ID 88"w x 96"l x 84"h
- Construction of 16 GA, galvanealed or 304SS/316SS (Specify)
- Top blower box to have (2) 5 HP, 480/230/208V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- (2) 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, NEMA 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 88" x 84" Automatic roll-up doors, electrically interlocked w/ (3) E-stops
- Flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping
- Lifting lugs for ease of assembly
- OD 102"w x 118"l x 124"h
- ID 88"w x 96"l x 84"h
- Construction of 16 GA, galvanealed or 304SS/316SS (Specify)
- Top blower box to have (2) 5 HP, 480/230/208V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- (2) 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, NEMA 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 88" x 84" Automatic roll-up doors, electrically interlocked w/ (3) E-stops
- Flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping
- Lifting lugs for ease of assembly
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS910-7-PLC-NF-RU-AD
Please Call for Pricing
- Construction of 16 ga, white epoxy painted steel
- OD 120" W x 120" L x 120 H (the rollup doors add 20" to each end)
- ID 107" W x 120" L x 84" H
- Top blower box to have (2) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 107" W x 84" H clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted fluorescent or LED lighting
- Unit shipped knock down in (8) sections w/ doors loose
- Construction of 16 ga, white epoxy painted steel
- OD 120" W x 120" L x 120 H (the rollup doors add 20" to each end)
- ID 107" W x 120" L x 84" H
- Top blower box to have (2) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 107" W x 84" H clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted fluorescent or LED lighting
- Unit shipped knock down in (8) sections w/ doors loose
Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS99-7-PLC-NF-RU-AD
Please Call for Pricing
- Construction of 16 ga, white epoxy painted steel
- OD 122”w x 120”l x 136”h (the rollup doors add 20” to each end)
- ID 108”w x 108”l x 84”h
- Top blower box to have (4) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (144) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 108”w x 84”h clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (8) sections w/ doors loose
- Construction of 16 ga, white epoxy painted steel
- OD 122”w x 120”l x 136”h (the rollup doors add 20” to each end)
- ID 108”w x 108”l x 84”h
- Top blower box to have (4) 5 HP, 460V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4” SP, vibration isolated
- 99.99% gasket seal hepa filter mounted in blower box
- (144) PVC nozzles on walls & ceiling @ 7500 FPM each
- Hinged & gasketed doors for motor / blower & filter on top of blower box
- Remotely mounted, UL labeled control system, PLC controlled
- Ceiling mounted sensor for automatic start
- (2) High speed fabric roll-up doors w/ view windows & interlocks w/ E-stop, doors as mfg. by Dynaco, doors sized to give clear 108”w x 84”h clear opening, doors activated by field mounted push buttons or pull cords (shipped loose)
- 35% Disposable prefilters in low wall mounted grilles
- Sealed sleeve for sprinkler, pipe & head by others
- 60 FC flush mounted LED lighting
- Unit shipped knock down in (8) sections w/ doors loose

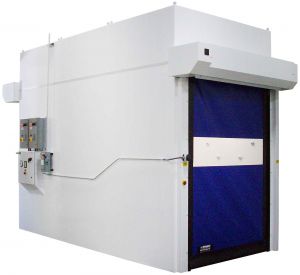

Air Shower - For Lift Truck Traffic - Roll-up Door - 100% Circulated Air Flow
AS997-ST-PLC-NF-RUD-KD
Please Call for Pricing
- OD 122"w x 121"l x 124"h
- ID 108"w x 108"l x 84"h
- Construction of 16 GA, galvanealed (painted or unpainted) or (304SS/316SS) (Specify)
- Top blower box to have (2) 5 HP, 480/230/208V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- (2) 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, NEMA 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 108" x 84" Automatic roll-up doors, electrically interlocked w/ (3) E-stops
- Flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping
- Lifting lugs for ease of assembly
- OD 122"w x 121"l x 124"h
- ID 108"w x 108"l x 84"h
- Construction of 16 GA, galvanealed (painted or unpainted) or (304SS/316SS) (Specify)
- Top blower box to have (2) 5 HP, 480/230/208V, 3 phase, 60 HZ, direct drive high pressure motor blower, developing 1800 CFM each to 4" SP, vibration isolated
- (2) 99.99% gasket seal HEPA filter mounted in blower box
- (80) PVC nozzles on walls & ceiling @ 7000 FPM each
- Hinged & gasketed door for motor & blower on top of blower box
- Internally mounted, NEMA 4, painted steel controls enclosure, w/PLC controller mounted on unit
- No floor w/ ceiling mounted sensor for automatic start
- (2) 108" x 84" Automatic roll-up doors, electrically interlocked w/ (3) E-stops
- Flush mounted LED lighting
- 35% Disposable prefilters in low wall returns w/ perforated SS grilles
- Unit assembled & tested in the shop prior to shipping
- Lifting lugs for ease of assembly
